Plastic Adjustable Self-Leveling Pedestals: A Rapid Leveling Support Solution for Floor Paving

Plastic Adjustable Self-Leveling Pedestals: A Rapid Leveling Support Solution for Floor Paving

I. Core Applications & Products

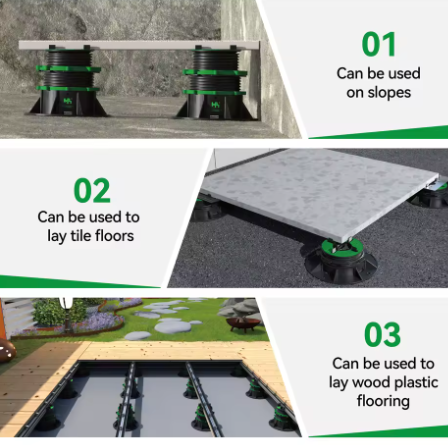

- Mainstream Scenarios: Suitable for supporting wood-plastic flooring, stone, ceramic tiles, gratings, etc. It adapts to uneven ground and drainage slopes, enables rapid leveling, is moisture-proof and corrosion-resistant, and facilitates later pipeline maintenance.

- Representative Brands: International brands include Buzon, Deck Pad and ArchiExpo STANDARD; domestic series cover TA and XF-T201D, etc. The height ranges from 5mm to 1360mm, with a single pedestal load capacity of 400–2500kg, catering to different load requirements.

- Typical Projects: For the outdoor wood-plastic flooring of a commercial complex in Xiamen, the construction period was shortened by 40% and maintenance costs were reduced; PP pedestals were adopted for a rooftop garden in Shanghai, achieving overhead moisture protection and rapid leveling.

 II. Technical & Material Highlights

 - Materials: Made of glass fiber reinforced PP/PA or POE elastomer, added with UV-resistant and anti-aging components. The outdoor service life can reach 15–20 years, and the materials are 100% recyclable.

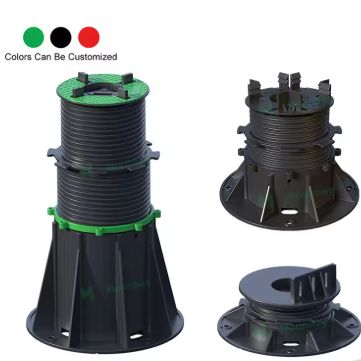

- Structure: Adopts spiral lifting + snap positioning or ball joint leveling, with a slope compensation range of 0–7% and leveling accuracy of 1–2mm. A single pedestal can bear a load of 300–500kg, meeting the load requirements of most ground surfaces.

- Intelligent Upgrades: Industrial-grade products are integrated with tilt sensors and electric actuators, which automatically detect and compensate for horizontal errors, suitable for intelligent construction and automated production lines.

 III. Market & Industry Trends

 - Demand Growth: Driven by green buildings and modular construction, the market in Europe, North America and the Asia-Pacific region grew by about 8–12% from 2024 to 2025, and the demand in China's building decoration sector remains strong.

- Standards & Specifications: ISO and ASTM have issued technical standards for ground support systems, regulating load-bearing capacity, durability and environmental protection requirements; relevant domestic industry standards are being improved step by step to promote the compliant development of the industry.

- Technology Trends: Integration of leveling, load-bearing, drainage and thermal insulation functions into a single unit to simplify the installation process; promotion of recycled plastics and bio-based materials to reduce carbon footprint; combination with BIM and IoT technologies to realize real-time construction monitoring and remote debugging.

 IV. Selection & Construction Key Points

 - Selection: Choose ball joint type (±30°) or spiral type (fine adjustment) according to ground flatness; select models with a single pedestal load capacity of ≥500kg and a spacing of ≤35cm based on load requirements.

• Construction: Follow the process of base cleaning → line setting → pedestal placement → leveling → panel paving → fixing. No cement mortar is needed, the construction period is shortened by about 40%, and it is suitable for rainy season construction.
